Annotate Introns

How can I add intron annotations to a translated feature?

View the Translated Feature

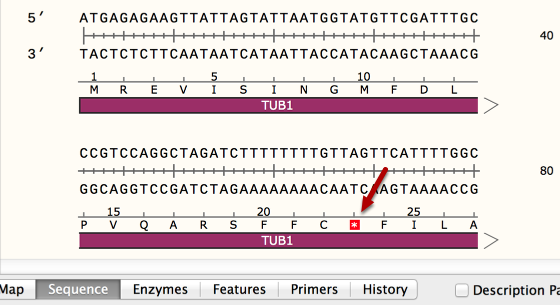

In this example, a Saccharomyces cerevisiae tubulin gene has been annotated as a translated feature. The intron has not yet been specified, so the translation contains stop codons.

Select the Intron Sequence

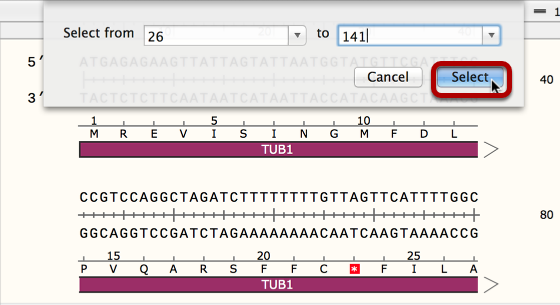

According to the Saccharomyces Genome Database, the intron lies between bases 26 - 141. To specify such a numerical range click Edit → Select Range... , type the range, then click Select.

Delete the Selected Feature Segment

To annotate the selected region as an intron, click Features → Delete Feature Segment....

When the Edit Feature dialog appears, click OK.

View the Intron

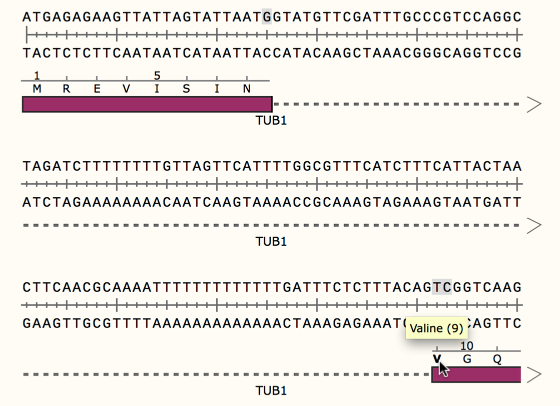

A dashed line will now mark the intron. The translation will adjust to span the intron boundaries. In this example, the codon for Valine-9 is split between the two exons.

Convert Introns to Lowercase

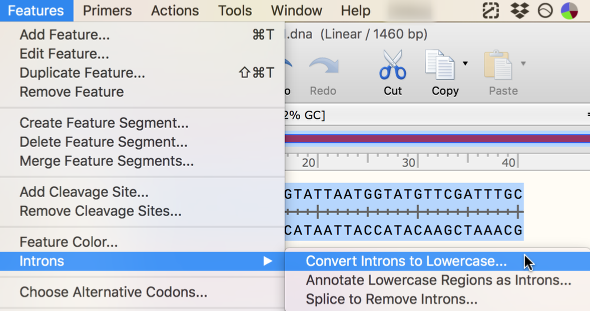

To convert introns in a translated feature to lowercase, click the feature to select it, then click Features → Introns→ Convert Introns to Lowercase... .

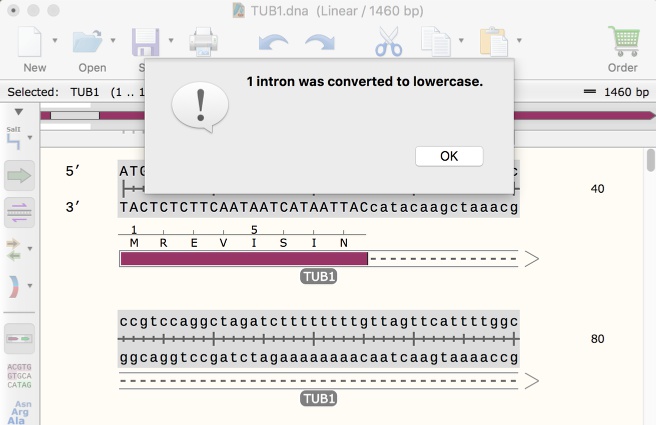

The number of introns converted to lowercase is shown. Click OK.

Annotate Introns Marked with Lowercase Characters

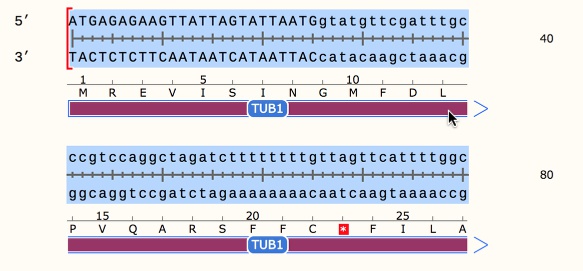

If the introns in a feature are marked with lowercase characters, you can use this property to annotate the introns. First, click the feature to select it.

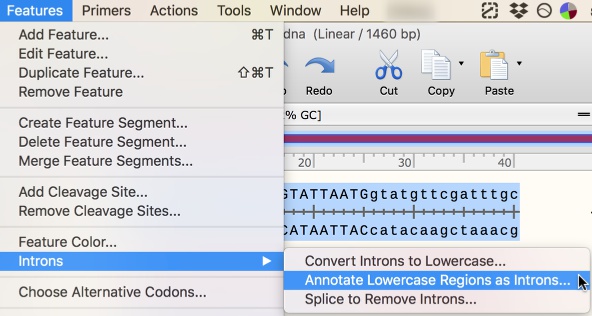

Then click Features → Introns→ Annotate Lowercase Regions as Introns... .

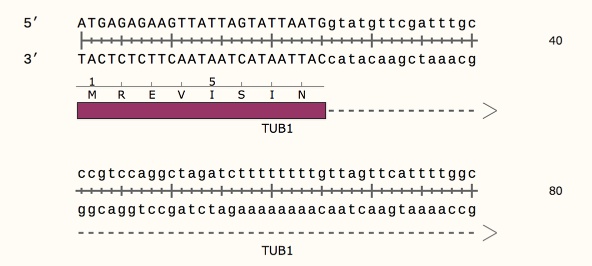

Dashed lines will now mark the introns.
